扁平卷筒电缆 YEFB YEFBP YEFBJ YEURB YEURBP YEURBJ

产品名称: 扁平卷筒电缆 YEFB YEFBP YEFBJ YEURB YEURBP YEURBJ
产品型号: YEFB YEFBP YEFBJ YEURB YEURBP YEURBJ
产品价格: 电议 特价:电议
发布时间:2017/2/26 11:13:29
关 注 度:2314

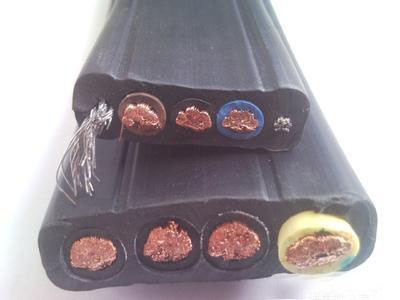

扁平卷筒电缆 YEFB YEFBP YEFBJ YEURB YEURBP YEURBJ

扁平卷筒电缆 YEFB YEFBP YEFBJ YEURB YEURBP YEURBJ

对于多芯扁平卷筒电缆,组合扁平卷筒电缆在卷筒上缠绕使用时,应根据电缆的长度与电缆叠加的厚度确定电缆的载流量。供电和数据传输用的扁平卷筒电缆,特别适用于空间较小的卷筒和极端机械应力高速卷绕的场合。主要应用于:岸边集装箱起重机(STS)、轨道式集装箱龙门起重(RMG)、卸船机、堆取料机及露天矿、地下矿。

执行标准:QB/TWB2008-6制造
结构:1.导体 无氧铜丝或镀锡铜丝
2.绝缘 TPE或三元乙丙橡胶
3.撕裂线
4.外护套 聚氨酯或氯丁橡胶  颜色:黑色

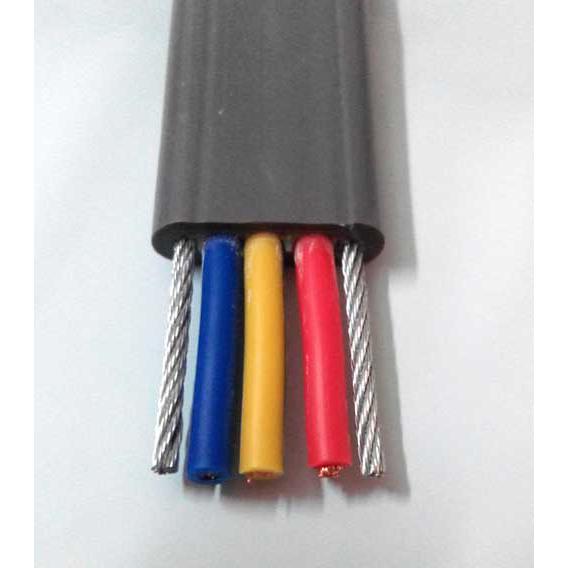

内容:J 型电缆为增强型,具有一定的抗拉和拖拽作用,适用于重型机械和移动设备。
P 型电缆为屏蔽型,镀锡铜丝和彩色尼龙复合屏蔽具有减少外界电磁波对电缆内电流的干扰,同时减少电 缆内产生的电磁场对外界的影响,适用于有信号干扰的场合。

型 号
名 称
YEFB
橡胶扁平卷筒电缆
YEFBP
屏蔽型橡胶扁平卷筒电缆
YEFBJ
加强型橡胶扁平卷筒电缆
YEURB
聚氨酯扁平卷筒电缆
YEURBP
屏蔽型聚氨酯扁平卷筒电缆
YEURBJ
加强型聚氨酯扁平卷筒电缆
电缆特性
导体最大拉伸载荷        静态 15N/mm2      动态 30N/mm2
弯曲半径            6×D(外径)
标称电压                                              0.6/1KV
额定电流                                              参见表
使用温度             - 45℃到+80℃
化学性能
用于室内和户外,耐油,耐潮湿,紫外线和臭氧,耐磨,抗刻痕,耐低温
型号
标称截面
(mm2)
电缆宽×高
(mm)
重量(近似)
(kg/km)

YEFB









3×0.75
3×1
3×1.5
3×2.5
3×4
3×6
3×10
3×16
3×25
3×35
3×50
3×70
3×95
3×120
3×150
3×185
3×240
4×1.5
4×2.5
4×4
4×6
4×10
4×16
4×25
4×35
4×50
4×70
4×95
5×1.5
5×2.5
5×4
5×6
5×10
5×16
5×25
7×1.5
7×2.5
7×4
7×6
7×10
10.70×4.5
11.30×4.7
13.65×5.70
16.50×6.70
18.55×7.60
20.20×8.20
25.40×10.20
29.30×11.50
35.97×14.40
40.90×16.30
47.20×18.40
52.90×20.30
60.40×22.80
66.85×24.90
73.81×27.30
81.07×29.70
90.70×33.30
17.00×5.75
20.80×6.70
23.40×7.65
25.60×8.20
32.40×10.20
37.60×11.50
46.36×14.40
52.40×16.30
60.80×18.40
68.40×20.30
78.40×22.80
20.35×5.75
25.10×6.70
28.25×7.65
31.00×8.20
39.40×10.20
45.90×11.50
56.75×14.40
30.05×5.75
36.70×6.70
40.95×7.65
44.80×8.20
56.40×10.20
80
90
130
190
270
340
550
780
1200
1620
2150
2860
3770
4660
5680
6910
8930
170
250
350
450
720
1020
1580
2120
2820
3760
4960
200
310
430
550
890
1260
1950
300
440
620
780
1260
型号
标称截面
(mm2)
电缆宽×高
(mm)
重量(近似)
(kg/km)



YEFB
















YEFBJ






8×0.75
8×1.5
8×2.5
8×4
10×1.5
10×2.5
12×1.5
12×2.5
16×1.5
16×2.5
20×1.5
20×2.5
24×1.5
3×25+1×4×1.5
3×25+1×5×1.5
3×25+1×3×2.5
3×35+1×3×1.5
3×35+1×7×1.5
3×35+1×4×2.5
3×35+1×3×4
3×50+1×5×1.5
3×50+1×3×2.5
3×50+1×4×2.5
3×50+1×5×2.5
3×50+1×7×2.5
3×50+1×4×4
3×50+1×3×6
3×70+1×7×1.5
3×70+1×4×2.5
3×70+1×7×2.5
3×70+1×3×4
3×70+1×7×4
3×70+1×5×6
3×95+1×7×2.5
3×95+1×4×4
3×95+1×7×4
3×95+1×3×6
3×95+1×7×6
3×95+1×4×10
3×120+1×7×2.5
3×120+1×4×4
3×5×1.5+2×7.0(G)
3×5×1.5+2×7.0(G)
3×3×2.5+2×7.0(G)
3×4×2.5+2×7.0(G)
3×7×2.5+2×9.5(G)
3×4×4+2×9.5(G)
3×7×4+2×9.5(G)
3×3×6+2×9.5(G)
3×5×6+2×9.5(G)
3×7×6+2×9.5(G)
3×4×10+2×9.5(G)
4×4×1.5+2×9.5(G)
4×7×1.5+2×9.5(G)
4×4×2.5+2×9.5(G)
4×7×2.5+2×9.5(G)
4×4×4+2×9.5(G)
4×3×6+2×9.5(G)
6×4×1.5+2×3.5(G)
26.20×4.50
33.40×5.75
41.00×6.70
45.80×7.65
40.10×5.75
49.60×6.70
46.80×5.75
58.20×6.70
62.10×6.15
77.30×7.10
77.00×6.15
96.00×7.10
91.90×6.15
46.36×14.40
46.36×14.40
46.36×14.40
49.20×16.30
52.40×16.30
52.40×16.30
52.40×16.30
57.59×18.40
57.59×18.40
60.80×18.40
60.80×18.40
60.80×18.40
60.80×18.40
60.80×18.40
64.40×20.30
64.40×20.30
64.40×20.30
64.40×20.30
64.40×20.30
64.40×20.30
74.00×22.80
74.00×22.80
78.40×22.80
74.00×22.80
78.40×22.80
78.40×22.80
80.85×24.90
80.85×24.90
55.57×15.19
58.90×16.30
55.57×15.19
58.90×16.30
67.80×18.40
67.80×18.40
73.50×20.30
67.80×18.40
73.50×20.30
81.00×22.80
81.00×22.80
81.40×18.40
81.40×18.40
81.40×18.40
81.40×18.40
81.40×18.40
81.40×18.40
78.80×14.40
200
330
500
690
410
610
480
720
670
1000
830
1250
1000
1430
1440
1430
1820
1930
1910
1930
2440
2420
2530
2540
2580
2570
2570
3230
3220
3380
3230
3460
3440
4310
4290
4490
4300
4580
4490
5180
5170
1300
1540
1290
1490
2070
2030
2630
2050
2590
3370
3220
2230
2350
2290
2500
2410
2470
1700
型号
标称截面
(mm2)
电缆宽×高
(mm)
重量(近似)
(kg/km)
YEFBP



3×1.0p
3×1.5p
3×2.5p
3×4p
3×6p
3×10p
3×16p
3×25p
3×35p
3×50p
3×2.5+1×1.0p
3×4+1×1.5p
3×6+1×1.5p
3×10+1×6p
3×16+1×6p
3×25+1×16p
3×35+1×16p
3×50+1×16p
3×70+1×16p
3×95+1×16p
3×120+1×16p
3×4+2×1.5p
3×6+2×1.5p
3×10+2×2.5p
3×16+2×2.5p
3×16+2×6p
3×25+2×6p
3×35×6p
3×50+2×6p
3×70+2×6p
3×95+2×6p
4×50+2×6p
3×25+1×(3×1.5p)
3×35+1×(4×1.5p)
3×50+1×(4×2.5p)
3×70+1×(4×2.5p)
3×95+1×(4×2.5p)
3×120+1×(4×2.5p)
16.50×6.70
18.55×7.65
25.40×10.20
25.40×10.20
25.40×10.20
35.97×14.39
35.97×14.39
47.20×18.40
47.20×18.40
52.90×20.30
20.80×6.70
23.40×7.65
25.60×8.20
32.40×10.20
37.60×11.50
46.36×14.39
52.40×16.30
57.59×18.40
64.40×20.30
74.00×22.80
80.85×24.90
28.25×7.65
31.00×8.20
39.40×10.20
45.90×11.50
45.90×11.50
55.57×15.19
58.90×16.30
67.80×18.40
73.50×20.30
81.00×22.80
81.40×18.40
46.36×14.39
52.40×16.30
60.80×18.40
68.40×20.30
74.00×22.80
80.85×24.90
180
250
440
480
510
960
1090
1800
2040
4590
250
340
430
710
960
1540
2010
2580
3310
4320
5210
420
510
810
1100
1150
1750
2120
2770
3530
4500
3430
1450
1920
2560
3360
4260
5150
扁平卷筒电缆 YEFB YEFBP YEFBJ YEURB YEURBP YEURBJ

扁平卷筒电缆 YEFB YEFBP YEFBJ YEURB YEURBP YEURBJ
