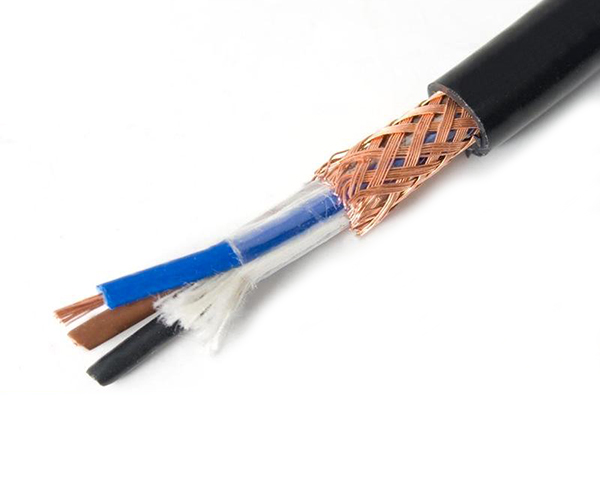

RVVP RVVP1多芯屏蔽电缆

产品名称: RVVP RVVP1多芯屏蔽电缆
产品型号: RVVP RVVP1
产品价格: 电议 特价:电议
发布时间:2018/3/22 11:26:23
关 注 度:693

RVVP RVVP1屏蔽电缆

产品型号:  RVVP RVVP1多芯屏蔽电缆

详细说明:
RVVP、RVVP1
多芯屏蔽电缆
Multi-Conductor Shielded Cable
标准 Standard: JB 8734.5-1998
■ 产品说明
额定电压:300/300V, 额定温度:70℃
导体使用绞线0.08-1.5mm2裸铜丝
PVC绝缘
镀锡或裸软铜线缠绕或编织屏蔽
PVC护套
可通过GB 12666.2垂直耐燃试验
使用标准厚度、易剥、易裁
具有抗酸碱、耐油、防潮、防霉、环保等特性

■ 应用
适用于电器、仪表和电子设备及自动化装置用连线



PRODUCT DESCRIPTION
Rated voltage: 00/300V,Rated temperature:70℃
Stranded, bare copper conductor,0.08-1.5mm2
PVC insulation
Tinned or bare copper wire sporal or braid shield
PVC jacket
Passes GB 12666.2 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid,alkail,oil,moisture and fungi,conform RoHS
APPLICATION
For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

RVVP、RVVP1 70℃ 300/300V

 RVVP、RVVP1 70℃ 300/300V

型号 Style

异体

Conductor

芯数Cores

绝缘

Insulation

屏蔽Shield 护套 Jacket

最大异体电阻 Max Resis- tance at 20℃

最小绝缘电阻 Max Insul- ation Resis- tance at 70℃

耐电压

Dielec- tric Strength AC 5 min

标准长度Standard Length

标准截面

Nom. Area

线数/线径 直径 Dia

标称厚度 Nom. Thick

标称外径 Nom.

 Dia.

缠绕/编织 Spiral/ Braid

标称厚度 Nom.

 Thick.

标称外径 Nom.

 Dia.

最大外径 Max. Dia
mm2 No./mm mm No. mm mm mm mm mm mm Ω/Km MΩ.Km V (M)
RVVP1 0.08 7/0.12 0.37 1 0.4 1.17 0.10 0.4 2.20 2.5 247.0 0.018 1500 500
2 0.10 3.40 4.2
0.12 7/0.15 0.46 1 0.4 1.26 0.10 0.4 2.30 2.6 158.0 0.016 1500
2 0.10 0.6 4.00 4.9 300
3 0.10 4.10 5.1
4 0.15 4.60 5.8
5 0.15 5.00 6.2
0.2 12/0.15 060 1 0.4 1.40 0.10 0.4 2.40 2.8 92.3 0.016 1500 500
2 0.10 0.6 4.20 5.3 300
3 0.15 4.60 5.8
4 0.15 4.90 6.2
5 0.15 5.30 6.7
0.3 16/0.15 0.69 1 0.5 1.69 0.10 0.4 2.70 3.1 69.2 0.014 1500 500
2 0.15 0.6 4.90 6.2 300
3 0.15 5.20 6.5
4 0.15 5.60 7.0 200
5 0.15 6.10 7.6
RVVP 0.08 7/0.12 0.37 1 0.4 1.17 16/3/0.10 0.4 2.40 2.9 247.0 0.018 1500 500
2 16/4/0.10 3.60 4.2 300
16/4/0.10 2.4×3.6 2.9×4.2
0.12 7/0.15 0.46 1 0.4 1.26 16/3/0.10 0.6 2.50 3.0 158.0 0.016 1500 500
2 16/4/0.10 4.20 4.9 300
16/4/0.10 2.9×4.2 3.4×4.9
3 16/4/0.10 4.40 5.1
4 16/4/0.15 4.90 5.8
5 16/4/0.15 5.30 6.2
6-7 16/4/0.15 5.60 6.6 200
10 16/5/0.15 6.90 8.1
12 16/6/0.15 7.10 8.3
0.2 12/0.15 0.60 1 0.4 1.40 16/4/0.10 0.4 2.60 3.2 92.3 0.013 1500 500
2 16/4/0.10 0.6 4.40 5.3 300
16/4/0.10 3.0×4.4 3.6×5.3
3 16/4/0.15 4.90 5.8
4 16/4/0.15 5.20 6.2
5 16/4/0.15 5.60 6.7 200
6-7 16/4/0.15 6.00 7.2
10 16/4/0.15 0.8 7.80 9.3
12 16/4/0.15 8.10 9.6 150
