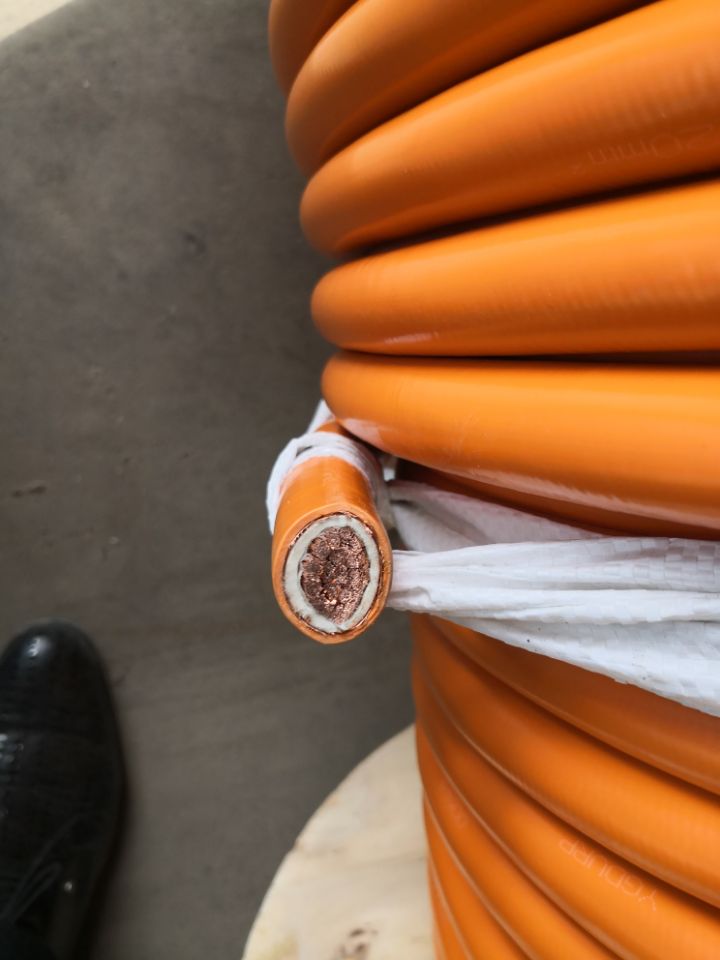

电动汽车充电电缆
电缆常用型号名称
|
交流产品型号 AC product specification |
直流产品型号 DC product specification |
名称 name |
|
EV-EF |
EVDC-EF |
乙丙橡胶（或类似合成橡胶）绝缘氯丁橡胶（或类似材料）护套电动汽车传导充电系统用电缆 Ethylene propylene rubber (or similar synthetic rubber) insulated neoprene rubber(or similar material) sheathed cable for electric vehicle conductive charging system |
|
EV-E90U |
EVDC-E90U |
乙丙橡胶（或类似合成橡胶）绝缘聚氨酯护套电动汽车传导充电系统用电缆 Ethylene propylene rubber (or similar synthetic rubber) insulated and polyurethanesheathed cable for electric vehicle conductive charging system |
|
EV-WDYJYJ |
EVDC-WDYJYJ |
低烟无卤交联聚烯烃绝缘低烟无卤交联聚烯烃护套电动汽车传导充电系统用电缆 Low smoke halogen free cross-linked polyolefin insulated polyolefin sheathed and low smoke non-halogen cross-linked cable for electric vehicle conductive charging system |
|
EV-SS |
EVDC-SS |
热塑性弹性体绝缘热塑性弹性体护套电动汽车传导充电系统用电缆 Thermoplastic Elastomer insulated and Thermoplastic Elastomer sheathed cable for electric vehicle conductive charging system |
|
EV-VV |
EVDC-VV |
聚氯乙烯绝缘聚氯乙烯护套电动汽车传导充电系统用电缆 PVC insulated and PVC sheathed cables for electric vehicle conductive charging system |
|
EV-S90U |
EVDC-S90U |
热塑性弹性体绝缘聚氨酯护套电动汽车传导充电系统用电缆 Thermoplastic Elastomer insulated and polyurethane sheathed cable for electric vehicle conductive charging system |
|
EV-EFPF |
EVDC-EFPF |
乙丙橡胶（或类似合成橡胶）绝缘铜丝编织屏蔽氯丁橡胶（或类似材料）护套电动汽车传导充电系统用电缆 Ethylene propylene rubber (or similar synthetic rubber) insulated copper wire weave shielded Chloroprene rubber (or similar material) sheathed cable for electric vehicle conductive charging system |
|
EV-E90UPU |
EVDC-E90UPU |
乙丙橡胶（或类似合成橡胶）绝缘铜丝编织屏蔽聚氨酯护套电动汽车传导充电系统用电缆 Ethylene propylene rubber (or similar synthetic rubber) insulated copper wire woven shield polyurethane sheath cable for electric vehicle conductive charging system |
|
EV-WDYJYJPYJ |
EVDC-WDYJYJPYJ |
低烟无卤交联聚烯烃绝缘铜丝编织屏蔽低烟无卤交联聚烯烃护套电动汽车传导充电系统用电缆 Low smoke halogen free cross-linked polyolefin insulated copper wire weave shielded cross-linked polyolefin sheathed and low smoke zero halogen cable for electric vehicle conductive charging system |
|
EV-SSPS |
EVDC-SSPS |
热塑性弹性体绝缘铜丝编织屏蔽热塑性弹性体护套电动汽车传导充电系统用电缆 Thermoplastic Elastomer insulated copper wire woven shield and Thermoplastic Elastomer sheathed cable for electric vehicle conductive charging system |
|
EV-S90S90PU |
EVDC-S90S90PU |
热塑性弹性体绝缘铜丝编织屏蔽聚氨酯护套电动汽车传导充电系统用电缆 Insulated copper wire woven shield polyurethane Thermoplastic Elastomer sheathed cable for electric vehicle conductive charging system |
|
EV-VVPV |
EVDC-VVPV |
聚氯乙烯绝缘聚铜丝编织屏蔽氯乙烯护套电动汽车传导充电系统用电缆 PVC insulated copper wire weave Shielded and PVC sheathed cable for electric vehicleconductive charging system |
额定电压
交流：450/750V
直流：1.0kV
温度范围
推荐使用的环境温度范围：-40℃~ 50℃
正常运行时导体温度和短路时（持续5S）导体温度见下表
Recommend use temperature:-40℃~ 50℃
Conductor highest temperature at operating and the longest continued temperature at short circuit ,the highest temperature stated as below
|
绝缘材料 Insulation material |
护套材料 Sheath material |
温度℃ temperature ℃ |
|||
|
导体允许温度 conductor temperature |
电缆表面 Cable performance |
安装和敷设install |
|||
|
长期 long term |
短路 short circuit |
||||
|
高 the highest |
高 the highest |
高 the highest |
低the highest |
||
|
E |
F |
60 |
200 |
50 |
-25 |
|
S |
S |
60 |
200 |
50 |
-25 |
|
S90 |
S90 |
90 |
250 |
50 |
-40 |
|
E90 |
U |
90 |
250 |
75 |
-40 |
|
S90 |
U |
90 |
250 |
75 |
-40 |
|
YJ |
YJ |
90 |
250 |
50 |
-25 |
|
V |
V |
90 |
250 |
50 |
-15 |
电缆的弯曲半径应不小于电缆外径的6倍。
Cable bending radius is not less than 6 times of the cable diameter
电缆结构
导体：第6类裸铜导体或镀锡铜导体，热固性绝缘材料导体采用镀锡铜导体，热塑性绝缘材料导体可采用裸铜导体。
绝缘：上表中所列的任一种挤包成型的化合物
内护：绝缘或护套材料的任一种
编织：裸圆铜线或镀锡铜线编织层
外护套：上表中所列的任一种挤包成型的化合物
Cable structure:
Cable structure
Conductor:6th class conductor bare copper or tinned copper conductor, thermosetting insulation conductor tinned copper conductor, thermoplastic insulation conductor bare copper conductor can be used.
Insulation:any of the ones listed in the previous table extruded molding compounds
Inner sheath:insulating or any other sheath material
Braiding:Bare round copper wire or tinned copper wire braid
Outer sheath:Any of the ones listed in the previous table extruded molding compounds
450/750V交流充电系统用电缆结构表
450/750V AC charging system cable structure table
|
主线芯数×标称截面积 mm2 Core x nominal section area |
绝缘厚度 标称值 Mm Insulation nominal thickness |
编织屏蔽铜丝直径标称值 Mm braided shield wires diameter of nominal value |
护套厚度标称值 mm Sheath thickness |
平均外径 mm Outer Diameter |
||||
|
无总屏蔽型 Non-shield type |
有总屏蔽型 Shield type |
无总屏蔽型 Non-shield type |
有总屏蔽型 Shield type |
|||||
|
下限 Lower limit |
上限 Upper limit |
下限 Lower limit |
上限 Upper limit |
|||||
|
2×1 |
0.8 |
0.15 |
1.2 |
1.3 |
7.5 |
9.7 |
9.6 |
12.4 |
|
2×1.5 |
0.8 |
0.15 |
1.2 |
1.3 |
8.0 |
10.3 |
10.1 |
13.0 |
|
2×2.5 |
0.9 |
0.15 |
1.3 |
1.3 |
9.4 |
12.1 |
11.3 |
14.5 |
|
2×4 |
1.0 |
0.15 |
1.3 |
1.4 |
10.8 |
13.9 |
12.9 |
16.6 |
|
2×6 |
1.0 |
0.15 |
1.4 |
1.4 |
12.0 |
15.4 |
13.9 |
17.8 |
|
2×10 |
1.2 |
0.20 |
1.4 |
1.5 |
14.5 |
19.5 |
16.8 |
22.4 |
|
2×16 |
1.2 |
0.20 |
1.5 |
1.6 |
16.8 |
22.4 |
19.1 |
25.2 |
|
2×25 |
1.2 |
0.20 |
1.6 |
1.7 |
19.7 |
26.0 |
22.0 |
28.8 |
|
2×35 |
1.4 |
0.25 |
1.7 |
1.8 |
23.1 |
30.3 |
25.7 |
33.5 |
|
2×50 |
1.6 |
0.25 |
1.9 |
2.0 |
27.2 |
35.3 |
29.7 |
38.6 |
|
2×70 |
1.6 |
0.25 |
2.0 |
2.1 |
30.8 |
39.9 |
33.4 |
43.1 |
|
3×1 |
0.8 |
0.15 |
1.2 |
1.3 |
8.0 |
10.3 |
10.1 |
13.0 |
|
3×1.5 |
0.8 |
0.15 |
1.2 |
1.3 |
8.4 |
10.9 |
10.5 |
13.6 |
|
3×2.5 |
0.9 |
0.15 |
1.3 |
1.4 |
10.0 |
12.8 |
12.1 |
15.5 |
|
3×4 |
1.0 |
0.15 |
1.3 |
1.4 |
11.5 |
14.8 |
13.6 |
17.4 |
|
3×6 |
1.0 |
0.20 |
1.4 |
1.5 |
12.8 |
16.3 |
15.1 |
19.2 |
|
3×10 |
1.2 |
0.20 |
1.5 |
1.6 |
15.6 |
20.9 |
17.9 |
23.8 |
|
3×16 |
1.2 |
0.20 |
1.6 |
1.6 |
18.1 |
24.0 |
20.2 |
26.7 |
|
3×25 |
1.2 |
0.20 |
1.7 |
1.7 |
21.2 |
27.9 |
23.3 |
30.5 |
|
3×35 |
1.4 |
0.25 |
1.8 |
1.9 |
24.9 |
32.6 |
27.5 |
35.8 |
|
3×50 |
1.6 |
0.25 |
1.9 |
2.0 |
29.1 |
37.7 |
31.7 |
41.0 |
|
3×70 |
1.6 |
0.30 |
2.1 |
2.2 |
33.2 |
42.9 |
36.0 |
46.4 |
|
4×1 |
0.8 |
0.15 |
1.2 |
1.3 |
8.6 |
11.2 |
10.7 |
13.8 |
|
4×1.5 |
0.8 |
0.15 |
1.3 |
1.3 |
9.4 |
12.1 |
11.3 |
14.5 |
|
4×2.5 |
0.9 |
0.15 |
1.3 |
1.4 |
10.9 |
14.0 |
13.0 |
16.7 |
|
4×4 |
1.0 |
0.20 |
1.4 |
1.5 |
12.9 |
16.4 |
15.2 |
19.3 |
|
4×6 |
1.0 |
0.20 |
1.4 |
1.5 |
14.0 |
17.9 |
16.3 |
20.8 |
|
4×10 |
1.2 |
0.20 |
1.5 |
1.6 |
17.2 |
22.8 |
19.5 |
25.7 |
|
4×16 |
1.2 |
0.20 |
1.6 |
1.7 |
20.0 |
26.3 |
22.3 |
29.2 |
|
4×25 |
1.2 |
0.25 |
1.7 |
1.8 |
23.4 |
30.6 |
26.0 |
33.9 |
|
4×35 |
1.4 |
0.25 |
1.9 |
2.0 |
27.7 |
36.0 |
30.3 |
39.3 |
|
4×50 |
1.6 |
0.25 |
2.1 |
2.1 |
32.5 |
42.0 |
34.9 |
45.0 |
|
4×70 |
1.6 |
0.30 |
2.2 |
2.3 |
36.9 |
47.6 |
39.7 |
51.0 |
|
5×1 |
0.8 |
0.15 |
1.3 |
1.3 |
9.6 |
12.4 |
11.5 |
14.8 |
|
5×1.5 |
0.8 |
0.15 |
1.3 |
1.4 |
10.3 |
13.2 |
12.4 |
15.8 |
|
5×2.5 |
0.9 |
0.20 |
1.4 |
1.4 |
12.1 |
15.5 |
14.2 |
18.1 |
|
5×4 |
1.0 |
0.20 |
1.4 |
1.5 |
14.1 |
18.0 |
16.4 |
20.9 |
|
5×6 |
1.0 |
0.20 |
1.5 |
1.5 |
15.5 |
19.8 |
17.7 |
22.4 |
|
5×10 |
1.2 |
0.20 |
1.6 |
1.7 |
19.1 |
25.2 |
21.4 |
28.1 |
|
5×16 |
1.2 |
0.20 |
1.7 |
1.8 |
22.2 |
29.1 |
24.5 |
32.0 |
|
5×25 |
1.2 |
0.25 |
1.8 |
1.9 |
26.0 |
33.9 |
28.6 |
37.1 |
|
5×35 |
1.4 |
0.25 |
2.0 |
2.1 |
30.8 |
39.9 |
33.4 |
43.1 |
|
5×50 |
1.6 |
0.30 |
2.2 |
2.3 |
36.1 |
46.5 |
38.9 |
50.0 |
|
5×70 |
1.6 |
0.30 |
2.3 |
2.4 |
40.9 |
52.5 |
43.7 |
56.0 |
交流充电电缆线芯颜色及功能说明
AC charging cable core colours and feature description
|
线芯编号 Core no. |
供电和车辆接口标识 Power supply and vehicle interface identifier |
线芯颜色 Wire color |
功能 function |
|
1 |
L |
棕 blown |
交流电源 AC power |
|
2 |
N |
蓝 blue |
中线 etnaer service line |
|
3 |
PE |
黄/绿 yellow/ green |
保护接地 protective grounding wire |
|
4 |
CP |
红 red |
控制确认 control to confirm |
|
5 |
CC |
白 white |
充电连接确认 charging connection confirmation |
|
6 |
NC1 |
黑 black |
备用扩展 alternate extensions |
|
7 |
NC2 |
黑或棕 black or blown |
备用扩展 alternate extensions |
1.0kV直流充电系统用电缆结构表
1.0KV AC charging system cable structure table
|
主线芯数×标称截面积 mm2 Corex nominal section area |
绝缘厚度 标称值 Mm Insulation nominal thickness |
编织屏蔽铜丝直径标称值 Mm braided shield wires diameter of nominal value |
护套厚度标称值 mm Sheath thickness |
平均外径 mm Out diameter |
||||
|
无总屏蔽型 Non-shield type |
有总屏蔽型 Shield type |
无总屏蔽型 Non-shield type |
有总屏蔽型 Shield type |
|||||
|
下限 Lower limit |
上限 Upper limit |
下限 Lower limit |
上限 Upper limit |
|||||
|
2×10 |
1.2 |
0.20 |
1.5 |
1.6 |
16.4 |
22.9 |
17.9 |
24.8 |
|
2×16 |
1.2 |
0.20 |
1.6 |
1.6 |
18.9 |
26.0 |
20.2 |
27.7 |
|
2×25 |
1.2 |
0.25 |
1.7 |
1.8 |
22.0 |
29.8 |
23.7 |
32.1 |
|
2×35 |
1.4 |
0.35 |
1.8 |
1.9 |
25.7 |
34.5 |
28.0 |
37.3 |
|
2×50 |
1.6 |
0.35 |
2.0 |
2.0 |
30.0 |
39.9 |
32.1 |
42.5 |
|
2×70 |
1.6 |
0.30 |
2.1 |
2.2 |
34.0 |
44.8 |
36.0 |
47.4 |
|
2×95 |
1.8 |
0.30 |
2.2 |
2.3 |
38.1 |
50.0 |
40.1 |
52.5 |
|
2×120 |
1.8 |
0.30 |
2.4 |
2.4 |
41.9 |
54.8 |
43.8 |
57.1 |
|
2×150 |
2.0 |
0.30 |
2.5 |
2.6 |
46.7 |
60.8 |
48.4 |
62.8 |
|
2×185 |
2.2 |
0.30 |
2.7 |
2.8 |
51.4 |
66.7 |
53.1 |
68.7 |
|
2×240 |
2.4 |
0.30 |
2.9 |
3.0 |
58.1 |
75.0 |
59.7 |
77.0 |
直流充电电缆线芯颜色及功能说明
DC charging cable core colours and feature descriptions
|
线芯编号 core no |
供电和车辆接口标识 Power supply and vehicle interface identifier |
线芯颜色 Core color |
功能 function |
|
1 |
DC |
棕 brown |
直流电源正 AC power positive |
|
2 |
DC- |
蓝 blue |
直流电源负 DC power negative |
|
3 |
PE |
黄/绿 yellow/ green |
保护接地 protective grounding |
|
4 |
S |
红 red |
充电通信CAN-H charging communication |
|
5 |
S- |
白 white |
充电通信CAN-L charging communication |
|
6 |
CC1 |
黑 black |
充电连接确认1 charging connection confirmation 1 |
|
7 |
CC2 |
黑/棕 black/brown |
充电连接确认2 charging connection confirmation 2 |
|
8 |
A |
红 red |
低压辅助电源正 Low voltage auxiliary power supply positive |
|
9 |
A- |
白 white |
低压辅助电源负 Low voltage auxiliary power supply negative |
